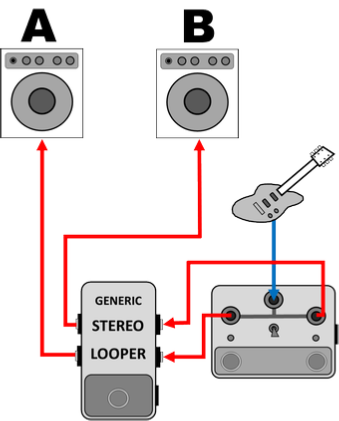

TO/FROM ‘A’ ONLY, ‘B’ ONLY, OR COMBINE THE TWO FOR WIDE STEREO AND/OR STACKED SOUNDS!
- COMPLETELY PASSIVE SWITCHING WITH ZERO EFFECT ON TONE.
- SUITABLE TO USE WITH ANY INSTRUMENT OR DEVICE THAT CAN BE CONNECTED VIA 1/4"/6.35MM JACK CABLE.
- EASY ACCESS, SPACE EFFICIENT FACE- MOUNTED 1/4" JACK SOCKETS.
- GROUND LIFT SWITCH.
- POPLESS SWITCHING.
- IMPEDANCE: A<>Y=10K B<>Y=10K A<>B=20K
- VINTAGE STYLE AMBER LED INDICATORS.
- L.E.D INDICATORS POWERED BY STANDARD 9-18V DC
(NEGATIVE CENTER).
- CURRENT DRAW (APPROX): <0.5MA
- AT LEAST ONE LED REMAINS ACTIVE AT ALL TIMES, MAKING IT AN IDEAL PEDAL BOARD 'MASTER POWER INDICATOR'.
- STANDARD 2.1MM POWER SOCKET FOR REGULAR PEDAL POWER SUPPLIES & DAISY-CHAINS. (BATTERY IS DISCONNECTED WHEN POWER JACK IS INSERTED). POWER FOR L.E.D.S ONLY.
- BATTERY CLIP OPTION INSIDE (POWER SAVING WHEN JACK IS ABSENT FROM ‘MAIN’ SOCKET).
- SATIN VINTAGE-STYLE ACRYLIC FINISH.
- ROBUST & COMPACT DIE-CAST ALUMINIUM CHASSIS.
- FULLY SHIELDED UNIT TO ELIMINATE INTERFERENCE AND NOISE.
- DESIGNED & BUILT IN DEVON, ENGLAND.

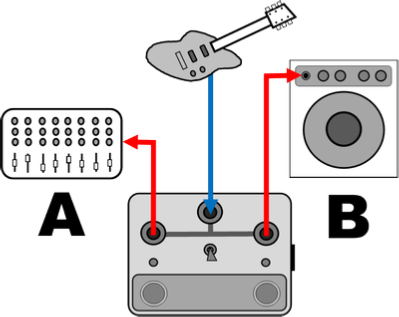

THE PASSIVE LINE SELECTOR IS ONE OF THE MOST SIMPLE & USEFUL TOOLS YOU CAN HAVE ON ANY PEDAL BOARD OR AROUND THE STUDIO. THIS UNIT WILL ALLOW YOU TO INSTANTLY SWITCH, SPLIT OR COMBINE SIGNALS TO AND FROM AMPLIFIERS OR INSTRUMENTS, AT THE CLICK OF A BUTTON.

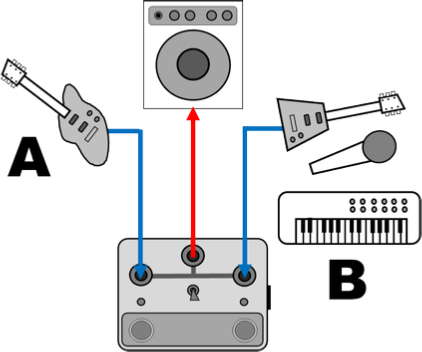

WHETHER USING TWO AMPLIFIERS OR INSTRUMENTS SIMULTANEOUSLY, OR SWITCHING BETWEEN THEM; THERE’S NO MORE FUMBLING WITH CABLES AS WITH THIS DEVICE YOU CAN CHOOSE THE DIRECTION OF SIGNAL FLOW WITH YOUR FEET!
NO UNECESSARY ‘TONE-SUCKING’ ELECTRONICS. THIS DEVICE IS COMPLETELY PASSIVE, KEEPING YOUR SIGNAL PURE AND UNTOUCHED.
PLEASE NOTE THAT CONNECTING EQUIPMENT IN THIS WAY CAN SOMETIMES CREATE GROUND LOOPS WHICH MAY INTRODUCE INTERFERENCE AND NOISE TO YOUR SIGNAL. OUR PASSIVE LINE SELECTOR INCLUDES A GROUND LIFT SWITCH WHICH CAN HELP REDUCE THE POTENTIAL FOR THIS TO OCCUR IN YOUR SET-UP.
